Description:

Oxford Poolside Dipper Hoist

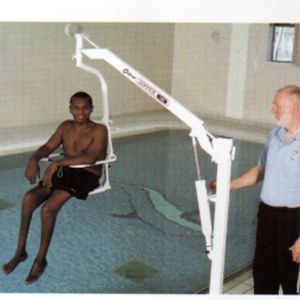

The Dipper poolside hoist is designed for use at swimming pools,therapy pools and quayside locations. The Dipper poolside hoist is a proven, reliable and safe method of gaining access to and from the water.

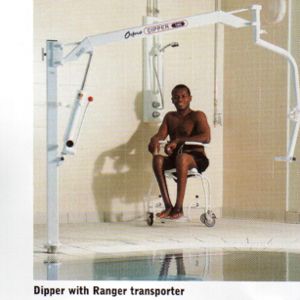

The Dipper hoist can be used with a sling or Ranger seat and transporter. The Ranger transport system provides easy access to the poolside from changing room and can be also used as a toileting or shower chair.

Specifications of Ranger Transport System
  • Max Width: 610mm (24")
  • Max Depth: 560mm (22")
  • Max Height: 610mm (24")
  • Seat Height: 510mm (20")
  • Seat To Footrest: 430mm - 480mm (16.9" - 18.9")
The locating socket is set into the pool surround and when not in use a plug is fitted to leave a completely flush surface (Fixing kits "A & B" Only)

Max user weight 135kgs (22st)

Three floor fixing kits available:
  • Floor Fixing Kit "A" For solid concrete floor.
  • Floor Fixing Kit "B" For tiled floors, and adjacent to water channel and minimum concrete thickness of 205mm (8")
  • Floor Fixing kit "C" Above floor mounting on solid concrete base where there is insufficient depth of concrete for "A" or "B" fixing kits.

Specifications of Dipper
  • Height (Socket A & B boom lowered: 1422mm (56")
  • Height (Socket A & B  boom fully elevation: 2108mm (82 1/2")
  • Highest base of seat above floor level (Socket A & B) 889mm (34 3/4")
  • Lowest base of seat below floor level (Socket A & B) 914mm (36")
  • Height (Socket C boom lowered) 1572mm (62")
  • Height (Socket C boom full elevation) 2258mm (88 1/2")
  • Highest base of seat above floor level (Socket C) 1039mm (40 1/2")

Costings:
  • Dipper Type "A" Hoist with Spreader Bar for sling (Stainless Steel Model) £6,989.00
  • Dipper Type "B" Hoist with Commode / Shower Chair and Transporter (pictured) £7,866.00
  • Dipper Type "C" Hoist with Commode / Shower Chair and Transporter (Stainless Steel Model) £9,439.00
  • Dipper Type "D" Hoist with Spreader Bar, Commode / Shower Seat and Transporter (Stainless Steel Model) £9.929.00



  • Floor fixing kit "A".........£728.00
  • Floor fixing kit "B".........£960.00
  • Floor fixing kit "C".........£1,673.00



Jay Balance Brochure
Manual (Download)
