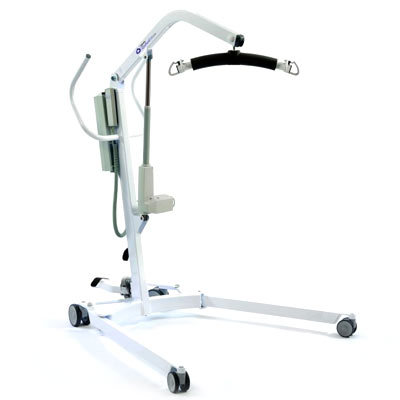

The Oxford Mini hoist has been developed especially with the domestic care environment and patient in mind. This compact but highly durable hoist offers superb manoeuvrability around the confines of domestic and nursing settings.

The Mini hoist offer excellent range of minimum and maximum lift heights, as well as having durable low profile front castor for that all important lift from the bed or chair.

Specifications
Safe working load 140kg (22st)

Max overall length 1120mm (44")

Max overall height 1726mm (68")

Min overall height 1133mm (44")

Max spreader bar height 1505mm (59")

Min spreader bar height 500mm (19 1/2")

Spreader bar height at max reach 995mm (39")

Spreader bar reach at max height 340mm (13")

Spreader bar reach at min height 475mm (18 1/2"")

Max reach 595mm (23")

Turning radius 1.104mm (43")

Legs open - external width 1.095mm (43")

Legs open - internal width 1.045 (41")

Legs closed - external width 600mm (24")

Legs closed - internal width 540mm (21")

Overall height of legs 100mm (4")

Six point spreader bar

Detachable battery pack.

LCD battery level indicator

Please order slings separately
